USB Interface Integrated Wired Wireless Mouse Chip For 2636 2633 Model

2636 2633 2634 2637 Integrated Circuit Chips For Wired Mouse

Chip name: Optical mouse chip
Mouse chip model: GZ-P001-KA3.B
Wired mouse chip product description: KA3.B is a highly integrated optical mouse chip with USB interface that adopts more advanced manufacturing technology and better photosensitive ability.
Main features:
● USB interface
● Single 5V power supply
● Compatible with Microsoft IntelliMouse 3D mouse.
● Support Microsoft Windows 7, 8, 10, XP, 2000, ME and 98 operating systems
● Comply with Microsoft WHQL and USB-IF
● Button support: left, center, right; support mechanical Z-axis encoder
● DPI setting: 800/1200 DPI can be set fixedly, the default is 1200
● Built-in power management circuit
● Built-in LED drive circuit
● Built-in LED current limiting resistor
● High integration, few external components
● Comply with ROHS Directive
● DIP12 package

Chip pin layout diagram

DPI setting of mouse chip: DPI pin, used to set the value of DPI, the following is divided into three situations to introduce the use of DPI pin.
1200 DPI setting: this state is the default state, the internal pull-up resistor method is used, or an external 51K ohm pull-up resistor can be connected. When the IC is powered on, check the status of this pin and find that no external level is connected or an external 51K ohm pull-up resistor is connected, set the internal DPI to 1200. Typical application circuit diagram, as shown in the figure below Show:

Main features of wired mouse chip:
1. USB interface, PS2 interface
2. Single 5V power supply
3. Compatible with Microsoft IntelliMouse 3D mouse. Supports Microsoft Windows Vista, XP, 2000, ME and 98 operating systems
4. Compliant with Microsoft WHQL and USB-IF
5. Button support: left, center, right; support mechanical Z-axis encoder DPI setting: 800/1200 can be fixedly set
6. DPI, you can also dynamically switch between 400, 800, 1200, 1600
7. With sleep mode and automatic wake-up function
8. Built-in power management circuit;
9. Built-in LED drive circuit
10. No external crystal oscillator design
11. High integration, few external components
12. Comply with ROHS directive
13. DIP12 package

The electrical parameters of the wireless mouse:

Description:
1: During the mouse PCB layout process, the distance between the IC ground pin and the capacitor ground should be as short as possible, and the ground wire should be as copper as possible
2: In DPI applications, during dynamic switching, the other end of the button is grounded and cannot be connected to a 5V power supply

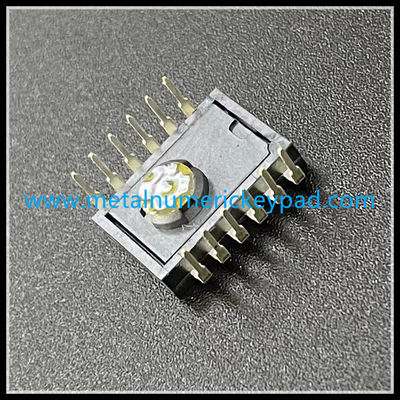

Product image presentation:
